Time inhomogeneity

Phase-type distributions model time-homogeneous Markov jump processes, but phasic has limited support for time-inhomogeneous processs using the two approaches described below:

from phasic import Graph, with_ipv # ALWAYS import phasic first to set jax backend correctly
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
%config InlineBackend.figure_format = 'svg'
from vscodenb import set_vscode_theme, vscode_theme

np.random.seed(42)
set_vscode_theme()
sns.set_palette('tab10')

Step-wise construction

nr_samples = 4

@with_ipv([nr_samples]+[0]*(nr_samples-1))
def coalescent_1param(state):
    transitions = []
    for i in range(state.size):
        for j in range(i, state.size):
            same = int(i == j)
            if same and state[i] < 2:
                continue
            if not same and (state[i] < 1 or state[j] < 1):
                continue
            new = state.copy()
            new[i] -= 1
            new[j] -= 1
            new[i+j+1] += 1
            transitions.append([new, [state[i]*(state[j]-same)/(1+same)]])
    return transitions

graph = Graph(coalescent_1param)
N = 10000
graph.update_weights([1/N])
graph.plot()

PDF/CDF

Say we want to model a population bottleneck where N falls to N_{bottle} at time t_{start} and then goes back to N at time t_{end}. To make the approach scale to more changes, and allow more than one parameter we can define changes as a list of (start_time, parameters) tuples:

graph = Graph(coalescent_1param)

N = 1
N_bottle, t_start, t_end = 0.2, 1, 1.3

param_changes = [
                 (t_start, [1/N_bottle]),
                 (t_end,   [1/N])
                 ]

cdf_cutoff = 0.99
cdf = []
times = []
ctx = graph.distribution_context()
graph.update_weights([1/N])

for change_time, new_params in param_changes:
    while ctx.time() < change_time:
        cdf.append(ctx.cdf())
        times.append(ctx.time())
        ctx.step()
        if ctx.cdf() >= cdf_cutoff:
            break
    graph.update_weights(new_params)
while ctx.cdf() < cdf_cutoff:
    cdf.append(ctx.cdf())
    times.append(ctx.time())
    ctx.step()

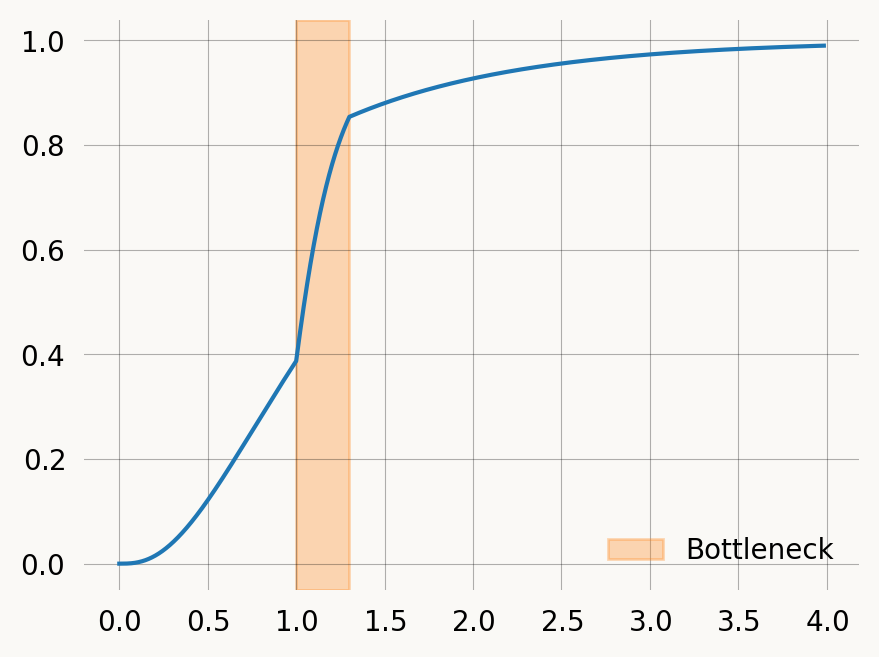

plt.plot(times, cdf)
plt.axvspan(xmin=t_start, xmax=t_end, alpha=0.3, color='C1', label='Bottleneck')
plt.legend() ;

Expectation

If we pick a time far into the future (like 1000), we can integrate under it to find the expectation. accumulated_occupancy computes the time spent in each state up to a time t, so all you have to do is sum these times.

acc_occ = graph.accumulated_occupancy(1000)
acc_occ

[0.0,
 0.16666666666666563,
 0.33333333333332593,
 0.3333333333333165,
 0.666666666666633,
 0.0]

np.sum(acc_occ).item(), graph.expectation()

(1.499999999999941, 1.4999999999999996)

Tip

Note that, unlike all other computations, and the PDF of continuous distributions are not mathematically exact. But as you can see, it is a (very good) approximation using arbitrarily small discrete steps. If the rates change dramatically, set you may have to use the granularity keyword argument to manually set granularity to a high enough value.

Keep in mind, that for time-homogeneous graphs, expected_sojourn_time is both exact and much faster than accumulated_occupancy.

Marginal expectations

We can scale by a reward, and thereby find the marginal expectation of e.g. singleton branch length accumulated by time t:

t = 2
reward_matrix = graph.states().T
np.sum(graph.accumulated_occupancy(t)*reward_matrix[0]).item()

1.8362807228049958

That lets us track how the SFS develops over time. Normalized to sum to one, we can see how singletons dominate early in the coalescence process:

@np.vectorize
def brlen_accumulated(i, t):
    acc_occ = graph.accumulated_occupancy(t)*reward_matrix[i]
    return np.sum(acc_occ).item()

times = np.linspace(0, 3, 301)
tons = list(range(nr_samples-1))
X, Y = np.meshgrid(tons, times, indexing='ij')
result = brlen_accumulated(X, Y)
col_sums = result.sum(axis=0)
result = result / col_sums[np.newaxis, :]
result = pd.DataFrame(
    result,
    columns=times,
    index=[f"{i+1}'tons" for i in range(nr_samples-1)]
    )

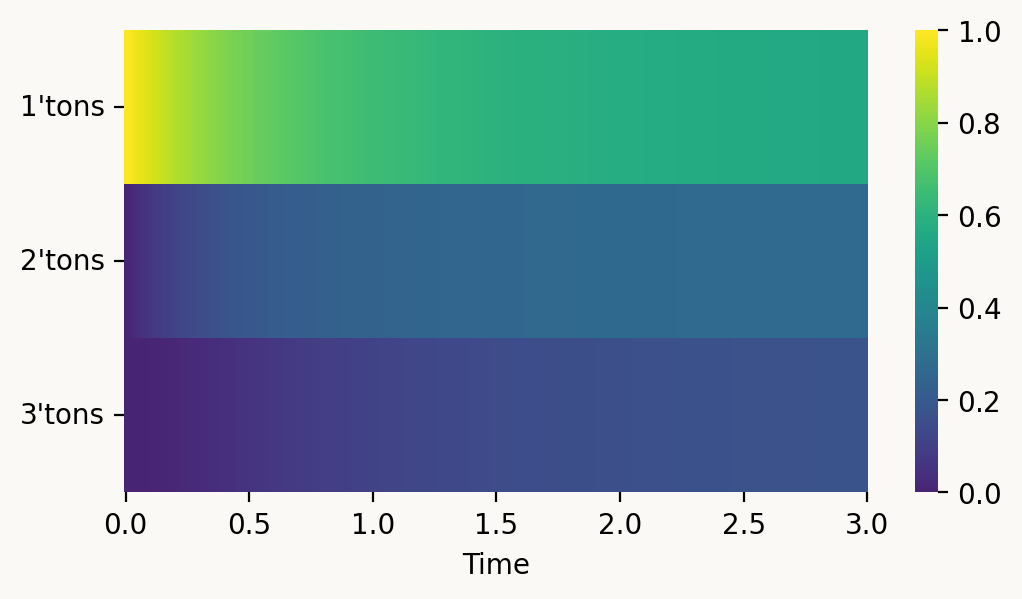

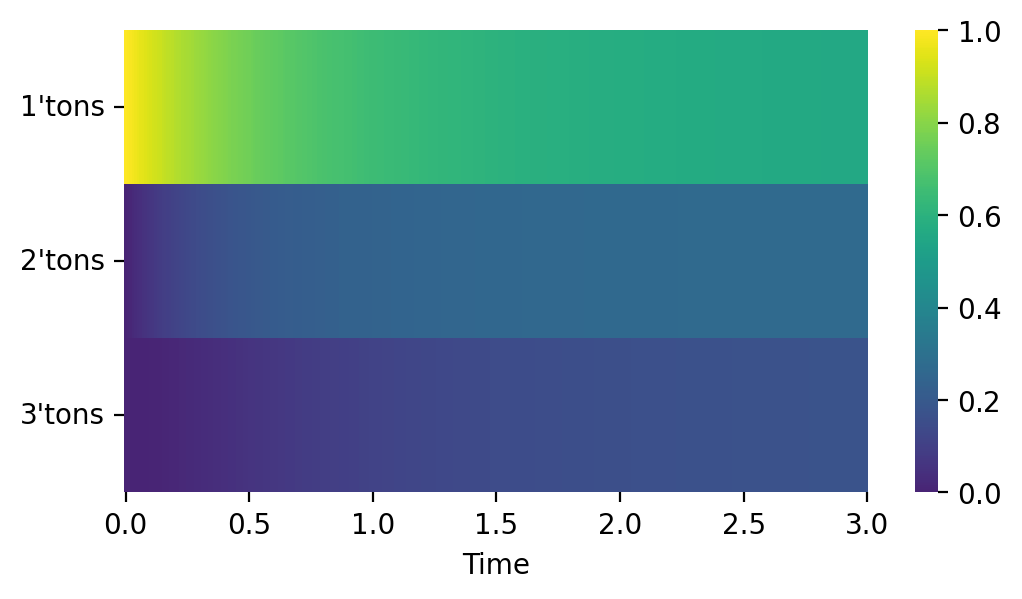

with vscode_theme(style='ticks'):
    fig, ax = plt.subplots(figsize=(6,3))
    ax = sns.heatmap(result, cmap='iridis', ax=ax,
                    xticklabels = 50
                    )
    ax.set_xlabel('Time')
    plt.yticks(rotation=0)
    plt.show()

<Figure size 500x370 with 0 Axes>

Moments of epoch-wise time homogeneous phase-type distributions

from phasic import Graph, StateIndexer, PropertySet, Property
import numpy as np
from functools import partial
from itertools import combinations_with_replacement
all_pairs = partial(combinations_with_replacement, r=2)


# nr_samples = 2
# epochs = [0, 1, 2]
# pop_sizes = [1, 5, 10]

# nr_samples = 10
# epochs = [0, 1, 2]
# pop_sizes = [1, 5, 10]

# # epochs = [0, 1, 2, 3, 4, 5]
# # pop_sizes = [1, 5, 10, 2, 4, 1]


# indexer = StateIndexer(
#       lineages=[Property('ton', min_value=1, max_value=nr_samples)],
#       slots=['epoch']
#   )

def coalescent_1param(state, epochs=None, epoch_idx=None, indexer=None):
    transitions = []

    epoch_idx = int(epoch_idx)

    if state[indexer.epoch] != epoch_idx:
        return transitions

    for i, j in all_pairs(indexer.lineages):
        pi = indexer.lineages.index_to_props(i)
        pj = indexer.lineages.index_to_props(j)
        if state.sum() <= 1:
            continue
        same = int(pi.ton == pj.ton)
        if same and state[i] < 2:
            continue
        if not same and (state[i] < 1 or state[j] < 1):
            continue
        new = state.copy()
        new[i] -= 1
        new[j] -= 1
        k = indexer.props_to_index(ton=pi.ton + pj.ton)
        new[k] += 1
        coeff = np.zeros(len(epochs)+1) # +1 to have a slot for transitions between epochs
        coeff[epoch_idx] = state[i]*(state[j]-same)/(1+same)
        # print(epoch_idx, coeff)

        transitions.append([new, coeff])
        # transitions.append([new, [state[i]*(state[j]-same)/(1+same)]])

    return transitions


def add_epoch(graph, callback, epochs, epoch_idx, indexer):

    epoch = epochs[epoch_idx]
    stop_probs = np.array(graph.stop_probability(epoch))
    accum_v_time = np.array(graph.accumulated_occupancy(epoch))

    with np.errstate(invalid='ignore'):
        epoch_trans_rates = stop_probs / accum_v_time

    for i in range(1, graph.vertices_length()-1):

        if epoch_trans_rates is None or np.isnan(epoch_trans_rates[i]):
            continue
        if graph.vertex_at(i).edges_length() == 0:
            continue

        vertex = graph.vertex_at(i)
        state = vertex.state()

        if not state[indexer.epoch] == epoch_idx - 1:
            continue

        sister_state = state.copy()
        sister_state[indexer.epoch] = epoch_idx
        child = graph.find_or_create_vertex(sister_state)
        coeff = np.zeros(len(epochs)+1) # +1 to have a slot for transitions between epochs
        coeff[-1] = epoch_trans_rates[i]
        vertex.add_edge(child, coeff)

    graph.extend(callback, epochs=epochs, epoch_idx=epoch_idx, indexer=indexer)


nr_samples = 10
epochs = [0, 1, 2]
pop_sizes = [1, 5, 10]

# epochs = [0, 1, 2, 3, 4, 5]
# pop_sizes = [1, 5, 10, 2, 4, 1]


indexer = StateIndexer(
      lineages=[Property('ton', min_value=1, max_value=nr_samples)],
      slots=['epoch']
  )

ipv = [0] * indexer.state_length
ipv[indexer.props_to_index(ton=1)] = nr_samples

graph = Graph(coalescent_1param,
              ipv=ipv,
              epochs=epochs,
              epoch_idx=0,
              indexer=indexer,
              )
graph.update_weights([1/size for size in pop_sizes] + [1])

for epoch_idx in range(1, len(epochs)):
    graph.update_weights([1/size for size in pop_sizes] + [1])
    add_epoch(graph, coalescent_1param, epochs, epoch_idx, indexer)

graph.update_weights([1/size for size in pop_sizes] + [1])

print(graph.moments(5))
graph.plot(size=(12, 8), wrap=False, max_nodes=300)

[8.726427931363645, 173.42232048983143, 5233.840746862072, 209923.8992478049, 10506328.513422351]

Check that I get the same as Janek for n=10

janek = np.array([8.807791589074768, 177.8449395799212, 5388.12207361224,
                   216313.46645481227, 10829024.877199283])

mine = graph.moments(5)
(mine - janek) / janek

array([-0.00923769, -0.02486784, -0.0286336 , -0.02953846, -0.02979921])

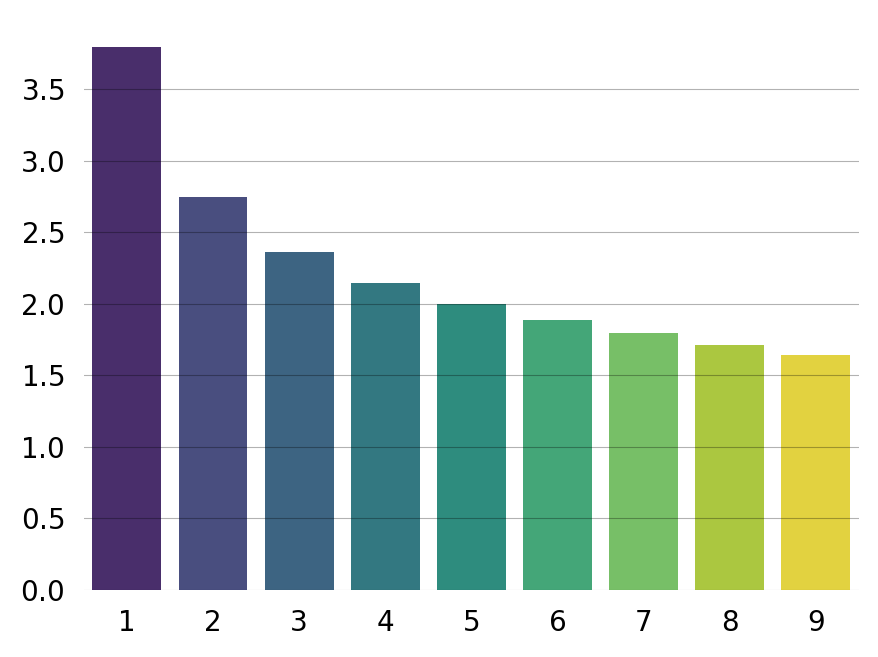

SFS

# Get states and remove epoch label column
state_mat = graph.states()
rewards = state_mat[:, :-1]  # Remove last column (epoch labels)

# Compute site frequency spectrum
x = np.arange(1, nr_samples)
sfs = np.zeros(nr_samples - 1)
for i in range(nr_samples - 1):
    reward_vec = rewards[:, i]
    transformed_graph = graph.reward_transform(reward_vec)
    sfs[i] = transformed_graph.moments(1)[0]

sns.barplot(x=x, y=sfs, hue=x, width=0.8, palette='iridis', legend=False);

Comparing to the exact results of Pool and Nielsen for pairwise coelescence time

def exp_coal(g, N):
    """
    Compute expected coalescence time in epoch
    N is the number of diploid invididuals
    g is the number of generations spanned by the epoch
    """
    # return 2*N - (g * np.exp(-g/(2*N))) / (1 - np.exp(-g/(2*N)))
    return N - (g * np.exp(-g/(N))) / (1 - np.exp(-g/(N)))

def epoch(demog, h, i):
    "Recursively compute expected coalescence time across all epoches"
    g, N = demog[i]
    N *= h
    if i == len(demog)-1:
    #     return 2*N
    # return (1-np.exp(-g/(2*N))) * exp_coal(g, N) + np.exp(-g/(2*N)) * (g + epoch(demog, h, i+1))
        return N
    return (1-np.exp(-g/(N))) * exp_coal(g, N) + np.exp(-g/(N)) * (g + epoch(demog, h, i+1))

def pool_nielsen(gens, Ne, h):
    """
    Compute expected coalescence time in units of 2N
    Ne is the a list/series of Ne in the epoch.
    gens is the a list/series of generation at which an each epoch begins (the last epoch lasts forever)
    h is the relative population size, 0.75 for chrX.
    """
    epochs = list()
    for i in range(len(gens)):
        if i == 0:
            epochs.append((gens[i+1], Ne[i]))
        elif i == len(gens)-1:
            epochs.append((None, Ne[i]))
        else:
            epochs.append((gens[i+1] - gens[i], Ne[i]))
    return epoch(epochs, h, 0)

n = 10
sampledemog_data = pd.DataFrame(dict(years=[0]+np.logspace(0, 5, n-1, dtype=int, base=10).tolist(),
                               Ne=np.random.randint(1, 5_000, size=n),
                               population=['pop']*n
                              ))

sampledemog_data.sort_values('years', inplace=True)

gen_time = 30
exp_coal_time = pool_nielsen(gens=sampledemog_data.years / gen_time,
                               Ne=sampledemog_data.Ne,
                               h=1)
# pool_nielsen(gens, Ne, 0.75)

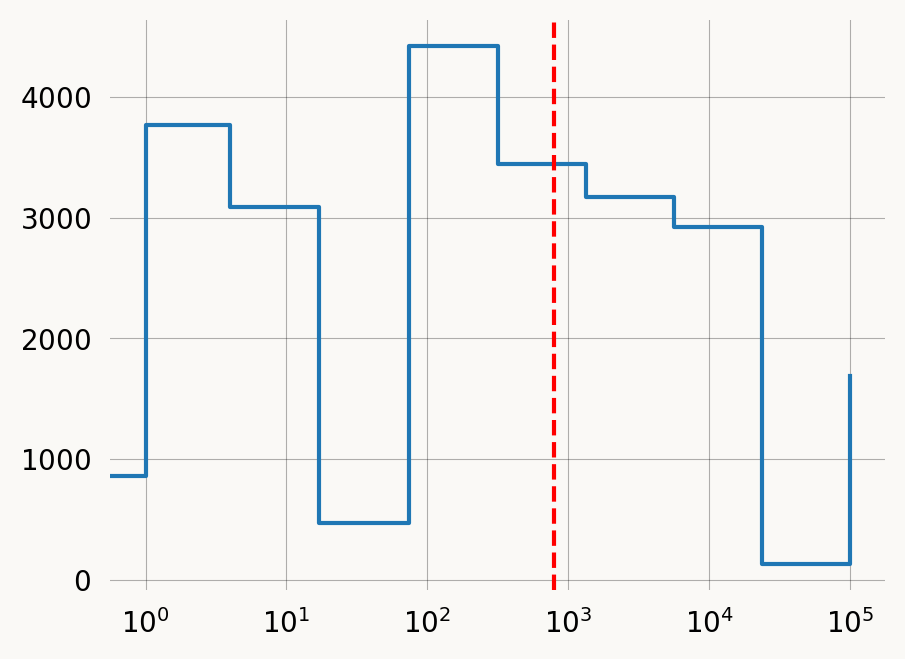

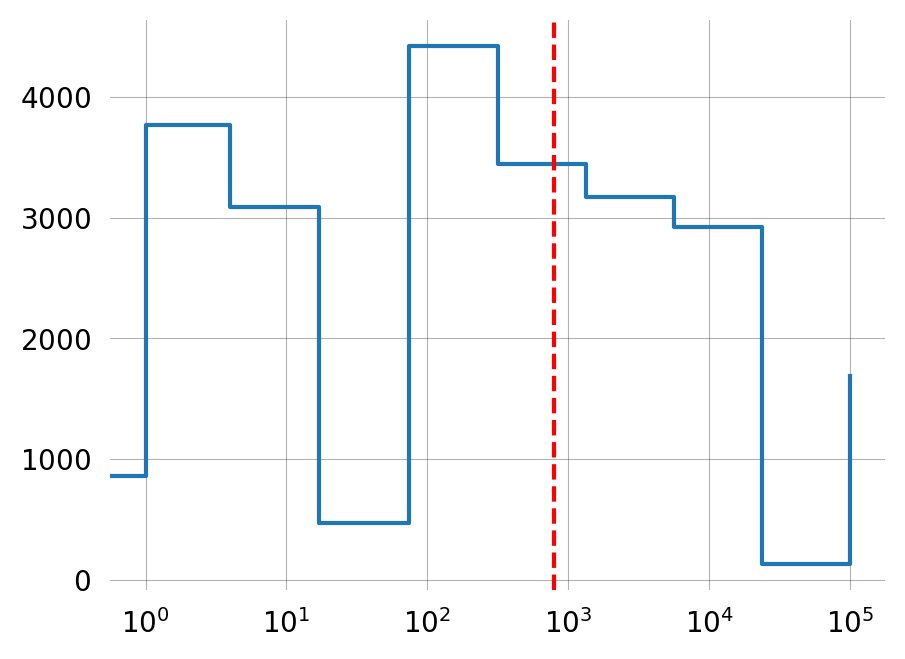

plt.step(sampledemog_data.years, sampledemog_data.Ne, where='post')
plt.gca().set_xscale('log')
plt.gca().axvline(exp_coal_time, color='red', linestyle='--')
plt.show()

FIXME: looks like there is a numerical issue here

nr_samples = 2 epochs = [0, 10, 20] pop_sizes = [10, 20, 10]

ipv = [0] * indexer.state_length ipv[indexer.props_to_index(ton=1)] = nr_samples

graph = Graph(coalescent_1param, ipv=ipv, epoch_idx=0, indexer=indexer, )

graph.update_weights([1/size for size in pop_sizes] + [1])

for epoch_idx in range(1, len(epochs)): graph.update_weights([1/size for size in pop_sizes] + [1]) add_epoch(graph, epoch_idx, indexer)

graph.update_weights([1/size for size in pop_sizes] + [1])

graph.expectation(), pool_nielsen(gens=epochs, Ne=pop_sizes, h=1).item()

Discrete distributions

The stepwise technique can be applied to discrete distributions as well in this case the resulting PMF is mathematically exact.

FIXME: update_weights does not work on reward transformed graphs because the reward transformation does not preserve the edges as parameterized

graph = Graph(coalescent_1param, ipv=ipv, epoch_idx=0, indexer=indexer, ) rewards = graph.discretize(lambda state: [0.1 * sum(state)]) rew_graph = graph.reward_transform(rewards)

N = 1 N_bottle, t_start, t_end = 0.2, 1, 1.3

param_changes = [
(t_start, [1/N_bottle]), (t_end, [1/N]) ]

cdf_cutoff = 0.99 cdf = [] times = []

ctx = rew_graph.distribution_context() rew_graph.update_weights([1/N])

for change_time, new_params in param_changes: while ctx.time() < change_time: cdf.append(ctx.cdf()) times.append(ctx.time()) ctx.step() if ctx.cdf() >= cdf_cutoff: break rew_graph.update_weights(new_params) while ctx.cdf() < cdf_cutoff: cdf.append(ctx.cdf()) times.append(ctx.time()) ctx.step()

plt.plot(times, cdf) plt.axvspan(xmin=t_start, xmax=t_end, alpha=0.3, color=‘C1’, label=‘Bottleneck’) plt.legend() ;

Same as the continuous example above, but discrete to account for poisson variance in number of mutations. Notice how the second moment increases:

nr_samples = 10 epochs = [0, 1, 2] pop_sizes = [1, 5, 10]

nr_samples = 2

epochs = [0, 1, 2]

pop_sizes = [1, 2, 10]

indexer = StateIndexer( lineages=[Property(‘ton’, min_value=1, max_value=nr_samples)], slots=[‘epoch’] )

def coalescent_2param(state, epoch_idx=None, indexer=None):
transitions = []

epoch_idx = int(epoch_idx)

if state[indexer.epoch] != epoch_idx:
    return transitions

for i, j in all_pairs(indexer.lineages):
    pi = indexer.lineages.index_to_props(i)
    pj = indexer.lineages.index_to_props(j)
    if state.sum() <= 1:
        continue
    same = int(pi.ton == pj.ton)
    if same and state[i] < 2:
        continue
    if not same and (state[i] < 1 or state[j] < 1):
        continue
    new = state.copy()
    new[i] -= 1
    new[j] -= 1
    k = indexer.props_to_index(ton=pi.ton + pj.ton)
    new[k] += 1
    coeff = np.zeros(len(epochs)+1+1) # +1 to have a slot for mutation edges and +1 for edges between epochs
    coeff[epoch_idx] = state[i]*(state[j]-same)/(1+same)
    # print(epoch_idx, coeff)

    transitions.append([new, coeff])
    # transitions.append([new, [state[i]*(state[j]-same)/(1+same)]])

return transitions

def add_epoch(graph, epoch_idx, indexer):

epoch = epochs[epoch_idx]
stop_probs = np.array(graph.stop_probability(epoch))
accum_v_time = np.array(graph.accumulated_occupancy(epoch))

with np.errstate(invalid='ignore'):
    epoch_trans_rates = stop_probs / accum_v_time

for i in range(1, graph.vertices_length()-1):
    if epoch_trans_rates is None or np.isnan(epoch_trans_rates[i]):
        continue
    if graph.vertex_at(i).edges_length() == 0:
        continue

    vertex = graph.vertex_at(i)
    state = vertex.state()

    if not state[indexer.epoch] == epoch_idx - 1:
        continue

    sister_state = state.copy()
    sister_state[indexer.epoch] = epoch_idx
    child = graph.find_or_create_vertex(sister_state)
    coeff = np.zeros(len(epochs)+1+1) # +1 to have a slot for transitions between epochs
    coeff[-1] = epoch_trans_rates[i]
    vertex.add_edge(child, coeff)

graph.extend(coalescent_2param, epoch_idx=epoch_idx, indexer=indexer)

ipv = [0] * indexer.state_length ipv[indexer.props_to_index(ton=1)] = nr_samples

graph = Graph(coalescent_2param, ipv=ipv, epoch_idx=0, indexer=indexer, )

def mutation_rate(state): coeff = np.zeros(len(epochs)+1+1) nr_lineages = sum(state[:-2]) coeff[-2] = 1#nr_lineages # TURN THIS BACK TO nr_lineages FOR CORRECT MUTATIONS ON TOTAL BRANCH LENGTH return coeff

graph.update_weights([1/size for size in pop_sizes] + [1] + [1]) # set edge weights

for epoch_idx in range(1, len(epochs)): graph.update_weights([1/size for size in pop_sizes] + [1] + [1]) # set weights of new edges add_epoch(graph, epoch_idx, indexer)

graph.update_weights([1/size for size in pop_sizes] + [1] + [1]) # set weights of new edges rewards = graph.discretize(mutation_rate, skip_existing=True)

print(graph.moments(5, rewards=rewards)) graph.plot(size=(12, 8), max_nodes=300)

Example: IM model
